Use the settings on this form to produce NC files for specific CNC machines.

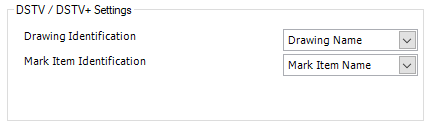

On the Production Workstation - Details form, you can select a post processor called DSTV, or one called DSTV+. In both cases, the settings here on the Production Workstation - Output File Options form are available. When an NC file is sent from STRUMIS to the workstation, you can override the NC file header with new drawing identification details and mark item details. You need to do this only when the CNC machine that is represented by the workstation record needs this information to read the file.
This can also be useful to associate the drawings with the program on the machine in question so that the operator can reference the relevant part.

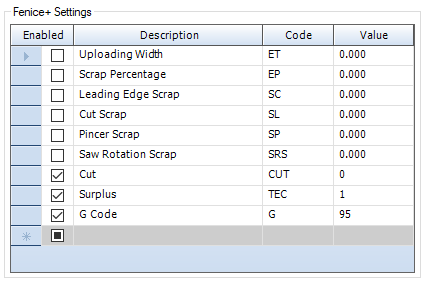

These settings are activated when you select a post processor for Ficep machinery (meaning the Fenice options) on the Production Workstation - Details form.
Each parameter will need to be added manually and this will depend upon the settings of the machine STRUMIS will be used in conjunction with.
