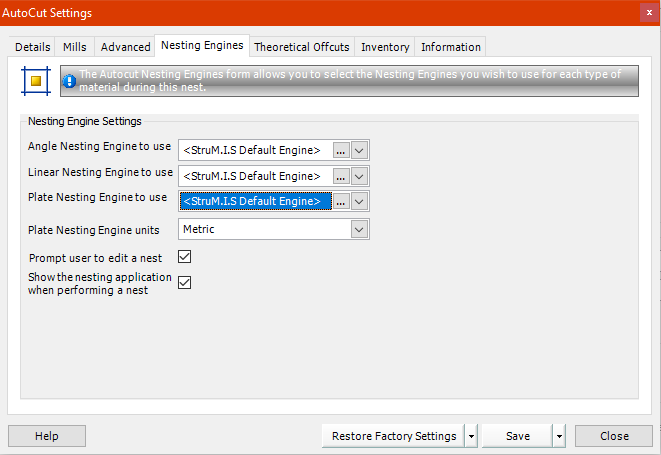

Use this form to specify the nesting engines to use for bars, angles and plate.
The defaults for these settings can be found in both the Facility Options and the Production Options however, these settings will be overridden by any settings changed in the Autocut Settings.
Field |
Description |
Angle Nesting Engine to use |
The
STRUMIS default engine is typically listed for all three cases,
but you can change the engine if necessary by using the |
Linear Nesting Engine to use |
|
Plate Nesting Engine to use |
|
Plate Nesting Engine units |
Specify metric or imperial. |
Prompt user to edit a nest |
Select this check box to have third-party nesting software display the nesting results so that you can accept them before they are used in STRUMIS. |
Show the nesting application when performing a nest |
Select this check box to have third-party nesting software show progress on the screen. |
, then adding the designated
name of the nesting engine into the displayed form.
