Use the following instructions to check whether an Inventory item is shaped. If the item is shaped then the check box in the Has Shape column on the Inventory Search grid is selected. you may have to use the grid options to display the Has Shape column.
For shaped items, use the following instructions to view the shape:
1. Search the Inventory
for the item of interest.
See Search the inventory for more information.
2. Select an item and click the Actions button.
3. Choose View Shape.

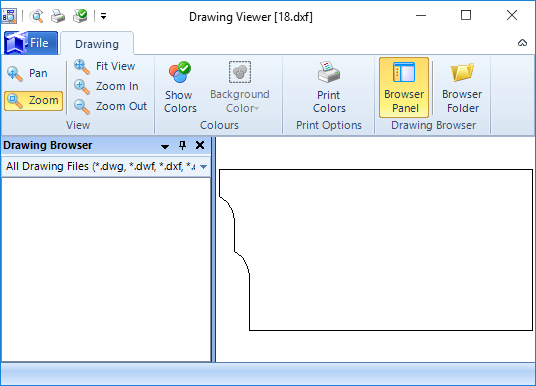

The Drawing Viewer shows the shape of the
item that you selected.
4. Use the available viewing options to explore the shape further. The colouring can also be adjusted using the Show Colour option and changing the default black background to something different with the Background option.
5. Close the Drawing Viewer when you have finished viewing the shape.
